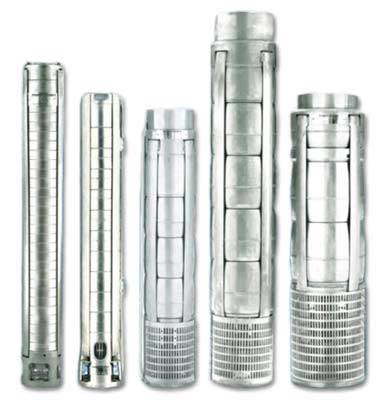

CRI Pump Deepwell Submersible Silver Line


	CRI Pump Deepwell Submersible Silver Line

CRI Pump Deepwell Submersible Silver Line

C.R.I. 3" & 4" Silver Line Series submersible pumps are built with thermoplastic impellers, diffusers and inbuilt check valve. All vital components of these pumps are made of corrosive resistance thermoplastic and the shaft is of SS 304/431. Pumps are multi stage centrifugal type. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. Built in check valve prevents back flow and reduces the risk of water hammering. All mounting dimensions are in accordance with NEMA Standard motors.

Application

Residential

Irrigation

Civil Water supply

Fountains

Industrial and rural water supply

Fire fighting

Pressure boosting units

Gardens

Sprinkler systems

Specifications

Temperature 33^oC (max)

Permissible Amount of Sand 25 gm / m³(max)

Chlorine ion density 500 ppm (max)

Allowable solids 3000 ppm (max)

Specific gravity 1.004 (max)

Hardness (Drinking Water) 300 (max)

Viscosity 1.75 x 105m2/ sec (max)

Turbidity 50 ppm silicon scale (max)

pH 6.5 to 8.5

Maximum Liquid temparature 33°C

Nominal Diameter 3" 4"

Power Range 0.37 – 1.1 kW 0.37 -7.5 kW

Speed 2900 rpm 2900 rpm

Discharge Range 0.5 – 5.4 m³/h 0.75 - 24 m³/h

Total Head Range 5 – 92.5 m 4 - 270 m

Outlet sizes 1" & 1¼" 1¼" ,1½" & 2”

Special Features

Best operating efficiency

Floating Impeller design to handle sand

S.S. 304 / Ceramic top bearing

Highly durable

Water cooled rewindable / Encapsulated

resin filled motor

Can be easily dismantled and repaired

Can handle more upthrust loads

Wearing ring in diffuser for long life

Available M.O.C. : Type P
