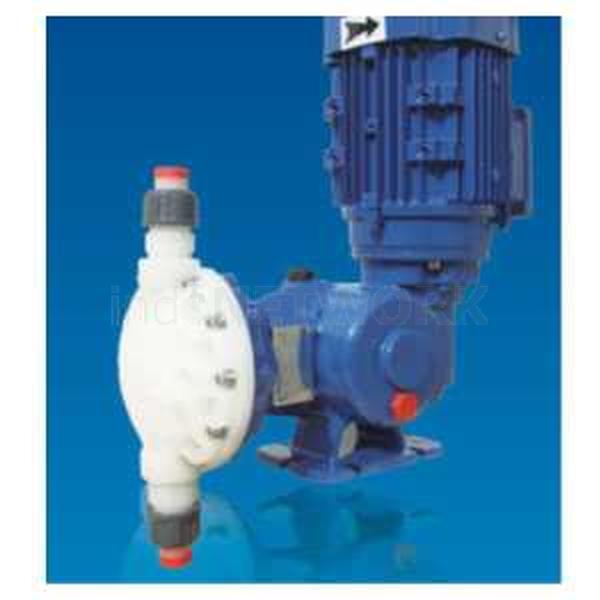

Seko MS1 Series
Seko MS1 Series


Seko MS1 Series

Mechanical Diaphgram Metering Pumps

FEATURES

-Flow rate : from 5,5 530 L/h

-Max pressure : 10 bar

-Stroke rate : 58-78-116 stroke/minute

-Diaphgram diameter :from 64 to 165 mm

-Motor : standard 0,18 -0,25-0,37 KW (IP55)

-Stroke length : 2 mm - 4 mm - 6 mm



TECHNICAL FEATURES

Model : MS1A064A

Diaphgram diameter (mm) : 64

Stroke Length (mm) : 2

Stroke Rate (mm) : 58

Flow Rate (L/h) : 5,5



Model : MS1A064B

Diaphgram diameter (mm) : 64

Stroke Length (mm) : 2

Stroke Rate (mm) : 78

Flow Rate (L/h) : 8



Model : MS1A064C

Diaphgram diameter (mm) : 64

Stroke Length (mm) : 2

Stroke Rate (mm) : 116

Flow Rate (L/h) : 11





Model : MS1A094A

Diaphgram diameter (mm) : 94

Stroke Length (mm) : 2

Stroke Rate (mm) : 58

Flow Rate (L/h) : 20





Model : MS1A094B

Diaphgram diameter (mm) : 94

Stroke Length (mm) : 2

Stroke Rate (mm) : 78

Flow Rate (L/h) : 26





Model : MS1A094C

Diaphgram diameter (mm) : 94

Stroke Length (mm) : 2

Stroke Rate (mm) : 166

Flow Rate (L/h) : 40





Model : MS1B108A

Diaphgram diameter (mm) : 108

Stroke Length (mm) : 4

Stroke Rate (mm) : 58

Flow Rate (L/h) : 60





Model : MS1B108B

Diaphgram diameter (mm) : 108

Stroke Length (mm) : 4

Stroke Rate (mm) : 78

Flow Rate (L/h) : 80





Model : MS1B108C

Diaphgram diameter (mm) : 108

Stroke Length (mm) : 4

Stroke Rate (mm) : 116

Flow Rate (L/h) : 120





Model : MS1C138A

Diaphgram diameter (mm) : 138

Stroke Length (mm) : 6

Stroke Rate (mm) : 58

Flow Rate (L/h) : 155





Model : MS1C138B

Diaphgram diameter (mm) : 138

Stroke Length (mm) : 6

Stroke Rate (mm) : 78

Flow Rate (L/h) : 220





Model : MS1C138C

Diaphgram diameter (mm) : 138

Stroke Length (mm) : 6

Stroke Rate (mm) : 116

Flow Rate (L/h) : 310







Model : MS1C165A

Diaphgram diameter (mm) : 165

Stroke Length (mm) : 6

Stroke Rate (mm) : 58

Flow Rate (L/h) : 230





Model : MS1C165B

Diaphgram diameter (mm) : 165

Stroke Length (mm) : 6

Stroke Rate (mm) : 78

Flow Rate (L/h) : 330





Model : MS1C165C

Diaphgram diameter (mm) : 165

Stroke Length (mm) : 6

Stroke Rate (mm) : 116

Flow Rate (L/h) : 530



OPTIONAL FEATURES

Every pump can be equipped with frequency-conversion motor or explosion proof or electric actuator which accepts 4 20mA signal



PUMP IDENTIFICATION

-Optional

-Motor

-Pump head materials

-Strokes

-Diaphgram diameter

-stroke length

-Mechanism type

-Model





PUMP HEAD MATERIALS

Liquid End : PVC liquid end (standard) or SS316L or PVDF

PTFE DIAPHGRAM : The material in contact with the liquid to be dosed are listed in the Pump head materials table (special materials may be supplied on request)

MAX DOSAGE TEMPERATURE : SS316L pump head 90 derajat C And PVC.PVDF pump head 40 derajat C

Every pump can be equipped with frequency-cnversion motor or explosion-proof motor or electric actuator which accepts 4-20 mA signal.
