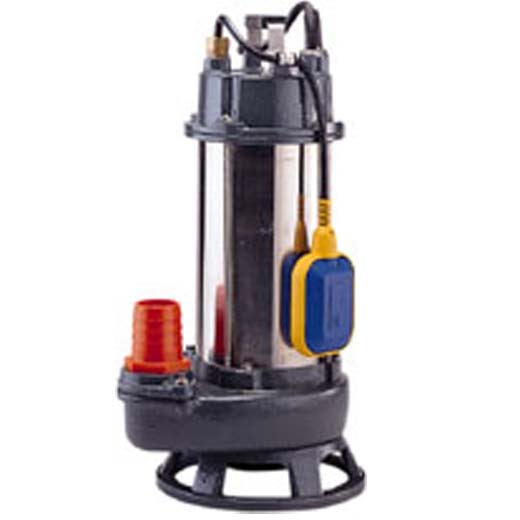

SHOWFOU PUMP |
| FEACTURE : | |||||||||||||||||
| Impeller : Hydrodynamic well balaced dual blade semi-open non clogging type. | |||||||||||||||||
| Mechanical Seal : Oil-Bath type, double mechanical seal & oil seal longer pump life. | |||||||||||||||||
| Shredder Mecahanishm : Surface hardening heat treatment is done on impeller vanes and cuting edges on impeller cover, both of which are the main components of shredder mechanism. | |||||||||||||||||
| Compact and light-weight : Designed to be right, so easy to carry and handle. | |||||||||||||||||
| Quite : Dynamic balance adjuster enables less noise in addition to underwater operation. | |||||||||||||||||
| Economical : Long-Runable with less maintanance cost. | |||||||||||||||||
| APPLICATIONS : | |||||||||||||||||
| Ideal for sewage, indutrian & ground water drainege installation in the following fields. | |||||||||||||||||
| # Sewage pumping station | |||||||||||||||||
| # Sewage treatment plants. | |||||||||||||||||
| # Septic tanks | |||||||||||||||||
| # Collection & Emergency | |||||||||||||||||
| # Flood & Emergency | |||||||||||||||||
| # Anywhere drainage of dirty water with regs mixed in. | |||||||||||||||||
| Residential Sites : | |||||||||||||||||
| # Residential houses | |||||||||||||||||
| # Small Group of houses | |||||||||||||||||
| # Flats & Apartment | |||||||||||||||||
| CommersIAL Sites : | |||||||||||||||||
| # Restaurants & Shops | |||||||||||||||||
| # Markets & supermakets | |||||||||||||||||
| # Hospitals | |||||||||||||||||
| # Laundries | |||||||||||||||||
| # Stations | |||||||||||||||||
| # Theaters | |||||||||||||||||
| # Garages | |||||||||||||||||
| Industrial Sites : | |||||||||||||||||
| # Mills & factories, for pumping slurry, sluge, viscous & Dirty water arised during proceses | |||||||||||||||||
| # Industrial building | |||||||||||||||||
| # Sewage treatment plants | |||||||||||||||||
| # Water purification plants | |||||||||||||||||
| SPECIFICATIONS : | |||||||||||||||||
| Type | MOTOR | Volt | Disch Dia | Max Flow | |||||||||||||
| SS | SST | Power HP | Power KW | Phase | V | Inch | MM | m3 /Min SS | SST | ||||||||
| SS-0511 N | 1~2 | 0.4 | 1 | 110 | 2" | 50 | 0.20 | 230 | |||||||||
| SS-0512 N | 1~2 | 0.4 | 1 | 220 | 2" | 50 | 0.20 | 230 | |||||||||
| SS-0532 N | 1~2 | 0.4 | 3 | 200-480 | 2" | 50 | 0.20 | 230 | |||||||||
| SS-111 N | SST-111 N | 1 | 0.75 | 1 | 110 | 2" | 50 | 0.50 | 290 | ||||||||
| SS112 N | SST-112 N | 1 | 0.75 | 1 | 220 | 2" | 50 | 0.50 | 290 | ||||||||
| SS-132 N | SST-132 N | 1 | 0.75 | 3 | 200-480 | 2" | 50 | 0.50 | 290 | ||||||||
| SS-111 LN | SST-11 LN | 1 | 0.75 | 1 | 110 | 3" | 80 | 0.60 | 320 | ||||||||
| SS-112 LNSST-112 LN1 | 1 | 0.75 | 1 | 220 | 3" | 80 | 0.60 | 320 | |||||||||
| SS-132 LN | SST-132 LN | 1 | 0.75 | 3 | 200-480 | 3" | 80 | 0.60 | 320 | ||||||||
| SS-212 N | SST-212 N | 2 | 1.5 | 1 | 200-480 | 3" | 80 | 0.80 | 355 | ||||||||
| SS-232 N | SST-232 N | 2 | 1.5 | 3 | 200-480 | 3" | 80 | 0.80 | 355 | ||||||||
| SS-312 | SST-312 | 3 | 2.2 | 1 | 200-480 | 4" | 100 | 0.80 | 410 | ||||||||
| SS-332 | SST-332 | 3 | 2.2 | 3 | 200-480 | 4" | 100 | 0.80 | 410 | ||||||||
| SS-532 | SST-532 | 5 | 3.7 | 3 | 200-480 | 4" | 100 | 1.06 | 410 | ||||||||
| SS-732 | SST-732 | 7 1/2 | 5.5 | 3 | 200-480 | 4" | 100 | 1.38 | 435 | ||||||||
| SS-1032 | SST-1032 | 10 | 7.5 | 3 | 200-480 | 4" | 100 | 1.50 | 435 | ||||||||
| SS-1532 | SST-1532 | 15 | 11 | 3 | 200-480 | 4" | 100 | 2.20 | 460 | ||||||||
